Compact Design
Low Pressure Drop
Consistant Dew Point
Power Saving
High Quality Finishing
Ease Of Installation
Environment Friendly
Reduced Maintenance
Ceramic Industry
Offset Printing
Textile Printing
Vmc Machines
Pharmaceutical Industry
Wooden Factory
Pneumatic Oprated Machinery
Cement Plants
Automobile Industry
Health Care/ Hospital
Paper Mills
Sand Blasting
Sugar Mills
Glass Industry
Chemical Industry
What Is Dew Point in Air Dryer?
Desiccant drying systems absorb water vapor from the air stream and can produceair with a dew point of -40 °C (-40 °F) and drier if required. 6. What are the standards for the quality of compressed air? ISO8573.1 is an international standard that specifies the. quality of compressed air.

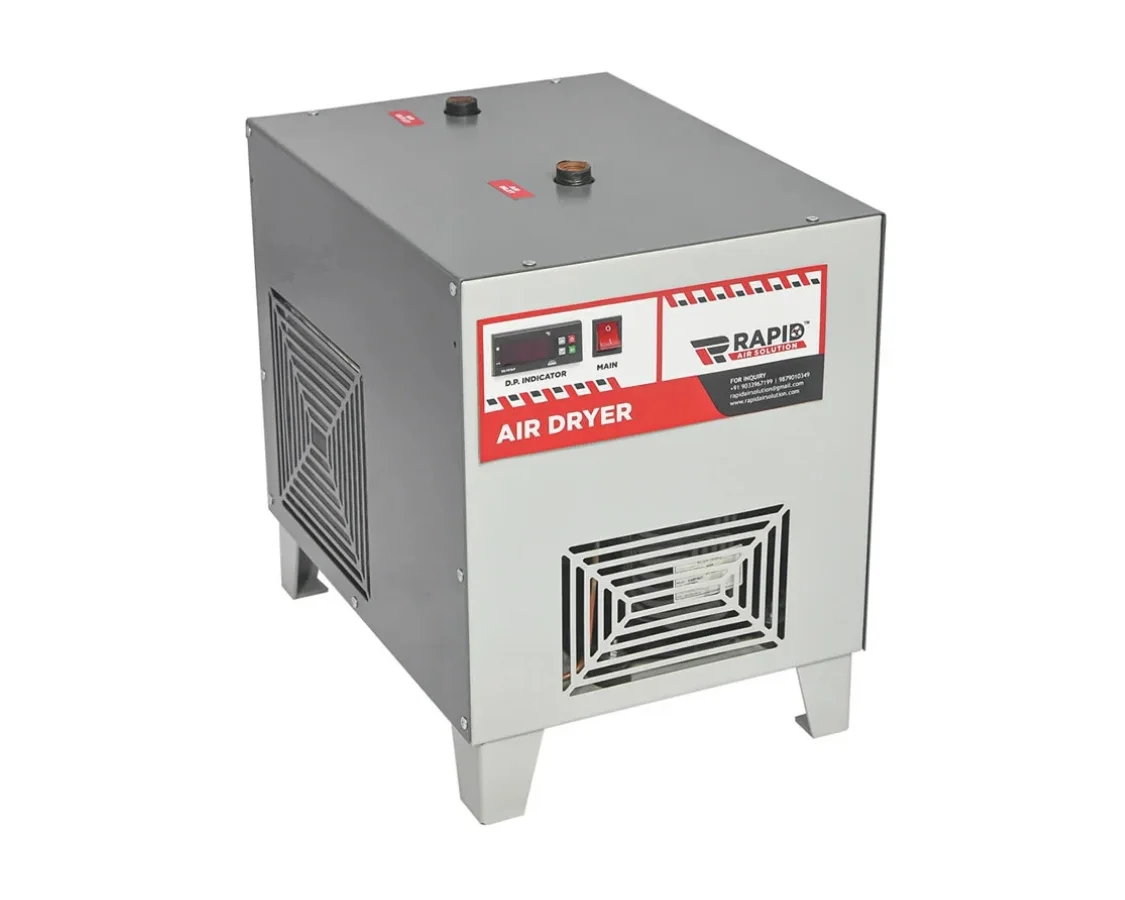

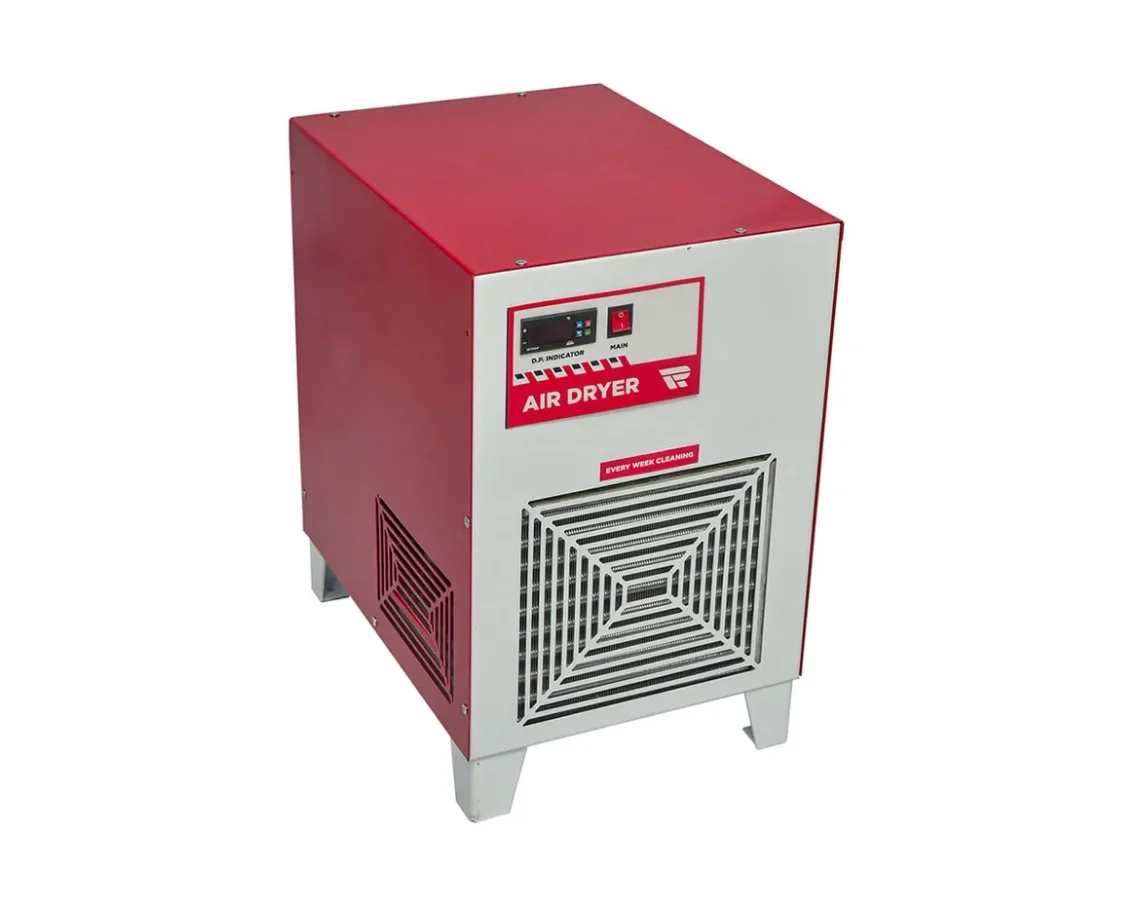

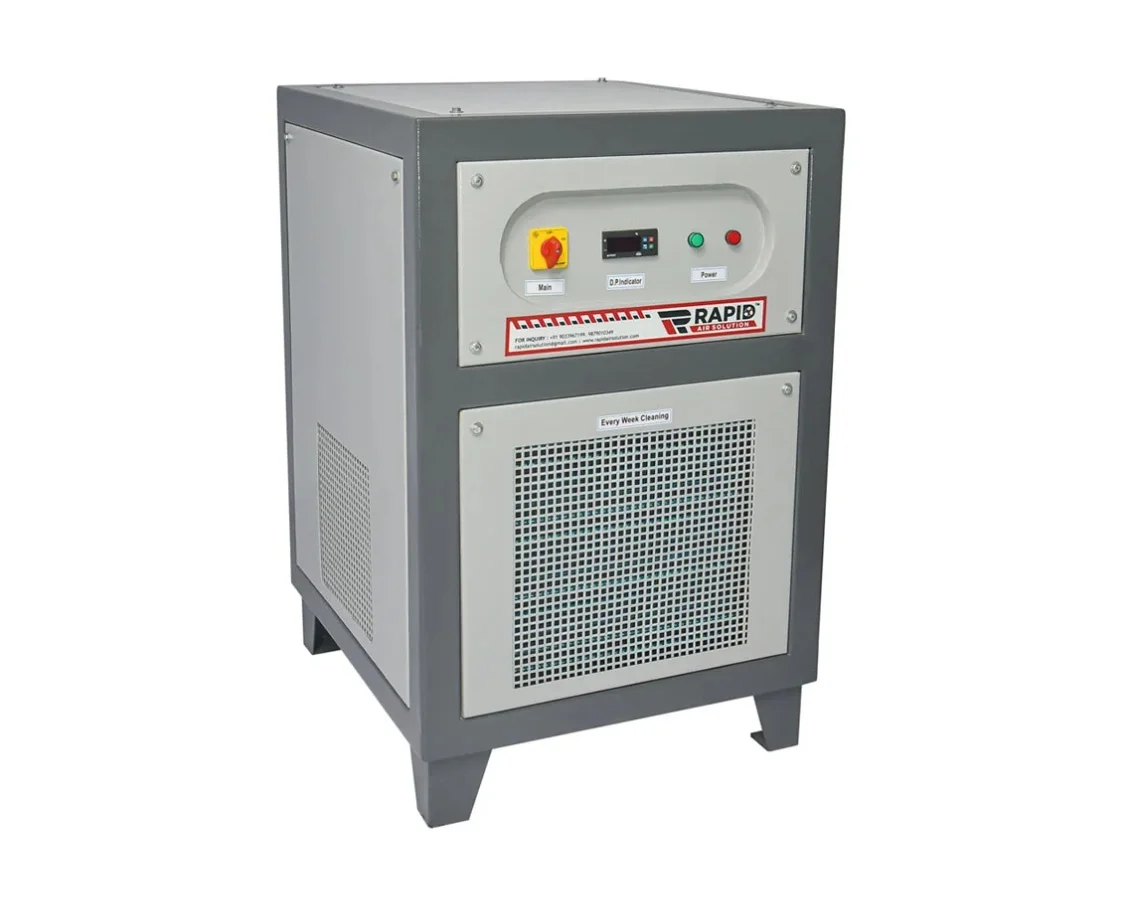

How Does A Refrigerated Air Dryer Work?
The refrigerated air dryer cools the incoming compressed air first in an air-to-airheat exchanger where the outgoing cool dry air pre-cools the hot incoming air and condenses some moisture out. This process causes the moisture to condense into liquid water and it is drained away.
| SR. NO. | MODEL | NOMINAL CAPACITY | ELECTRICAL CONNECTION | RATED POWER KW | ||
|---|---|---|---|---|---|---|
| CFM | M³/H | 1-PH | 3-PH | |||
| 1 | LI-002 | 20 | 34 | 0.15 | ||
| 2 | LI-004 | 40 | 68 | 0.20 | ||
| 3 | LI-006 | 60 | 102 | 0.40 | ||
| 4 | LI-008 | 80 | 136 | 0.50 | ||
| 5 | LI-010 | 100 | 170 | 0.60 | ||
| 6 | LI-015 | 150 | 255 | 0.90 | ||
| 7 | LI-020 | 200 | 340 | 1.20 | ||
| 8 | LI-025 | 250 | 425 | 1.40 | ||
| 9 | LI-030 | 300 | 510 | 1.60 | ||
| 10 | LI-040 | 400 | 680 | 1.90 | ||
| 11 | LI-050 | 500 | 850 | 2.30 | ||
| 12 | LI-060 | 600 | 1020 | 2.80 | ||
| 13 | LI-070 | 700 | 1189 | 3.70 | ||
| 14 | LI-080 | 800 | 1360 | 4.20 | ||
| 15 | LI-100 | 1000 | 1699 | 5.00 | ||
| 16 | LI-120 | 1200 | 2039 | 5.45 | ||
| 17 | LI-150 | 1500 | 2550 | 6.80 | ||
